Advanced protection 600Vac, 1-600A, fast-acting fuses
Class J current-limiting, fast-acting fuses.
——————————————————————————————————
Description:

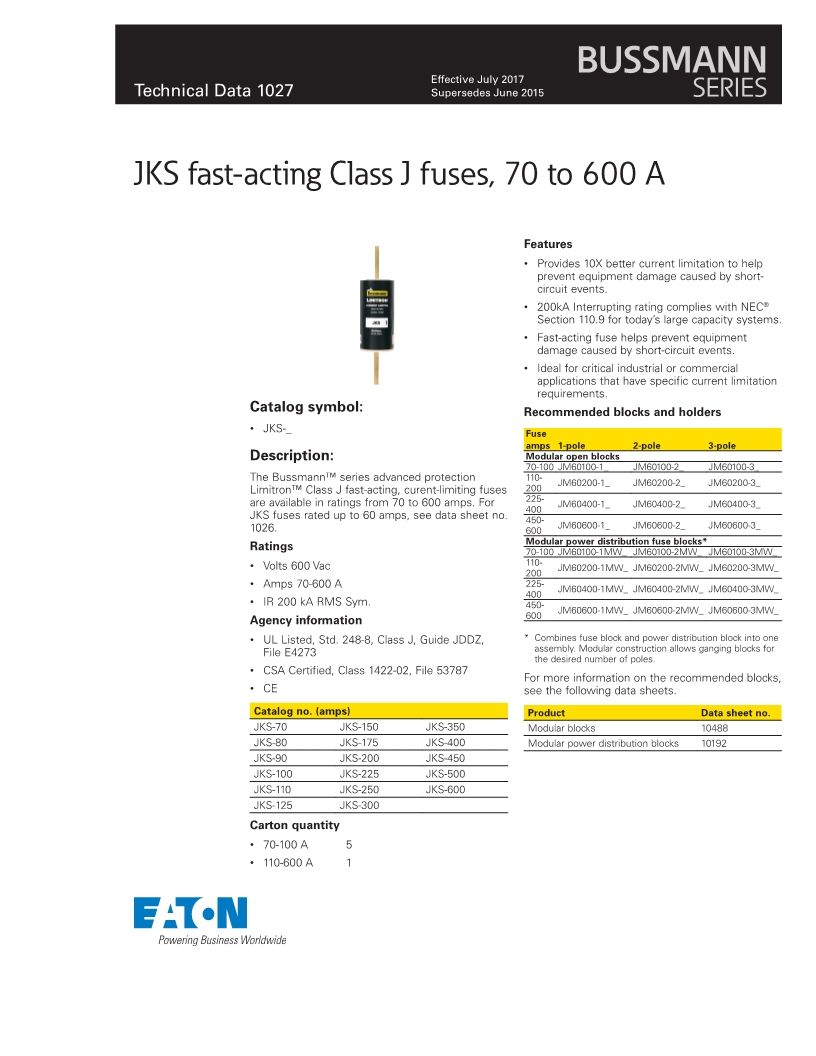

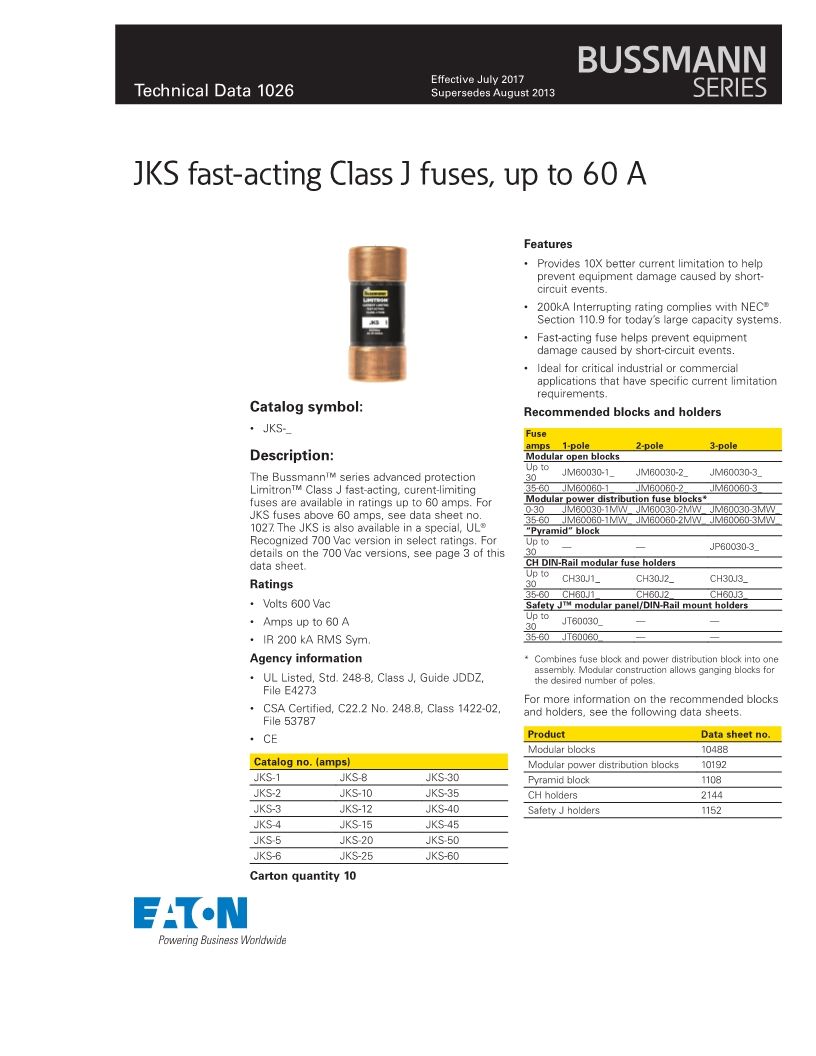

Fast-acting, current-limiting fuse.
Ratings:
Volts: 600Vac (or less)
Amps: 1-600A
IR: 200kA RMS Sym.
Agency Information: CE, Std. 248-8, Class J, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787.
General Information:
• Single-element, current-limiting fuses provide superior shortcircuit protection.
• Protects low interrupting capacity circuit breakers. Limits the short-circuit current to meet the interrupting capacity requirements of existing equipment.
• On older systems available short-circuit current may exceed the interrupting capacity of the circuit breakers, fuses can be installed in series with existing equipment.
• Well suited for lighting and heating circuits and other noninductive loads.
• Provides component short-circuit protection in compliance with NEC 110-10, where protection devices shall clear a fault without “extensive damage” to the circuit components.
• High interrupting rating helps meet the requirements of future system expansion and the increases in available utility shortcircuit current.
• Fuses can be selectively coordinated with ease.
Features and Benefits

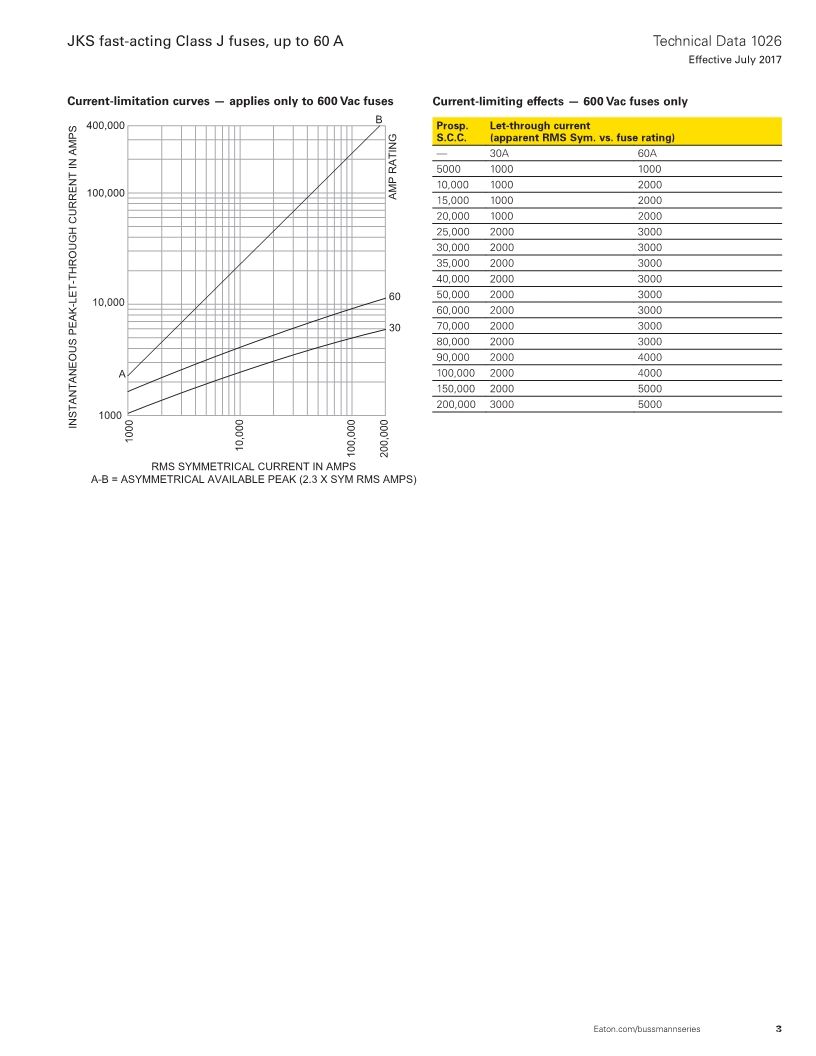

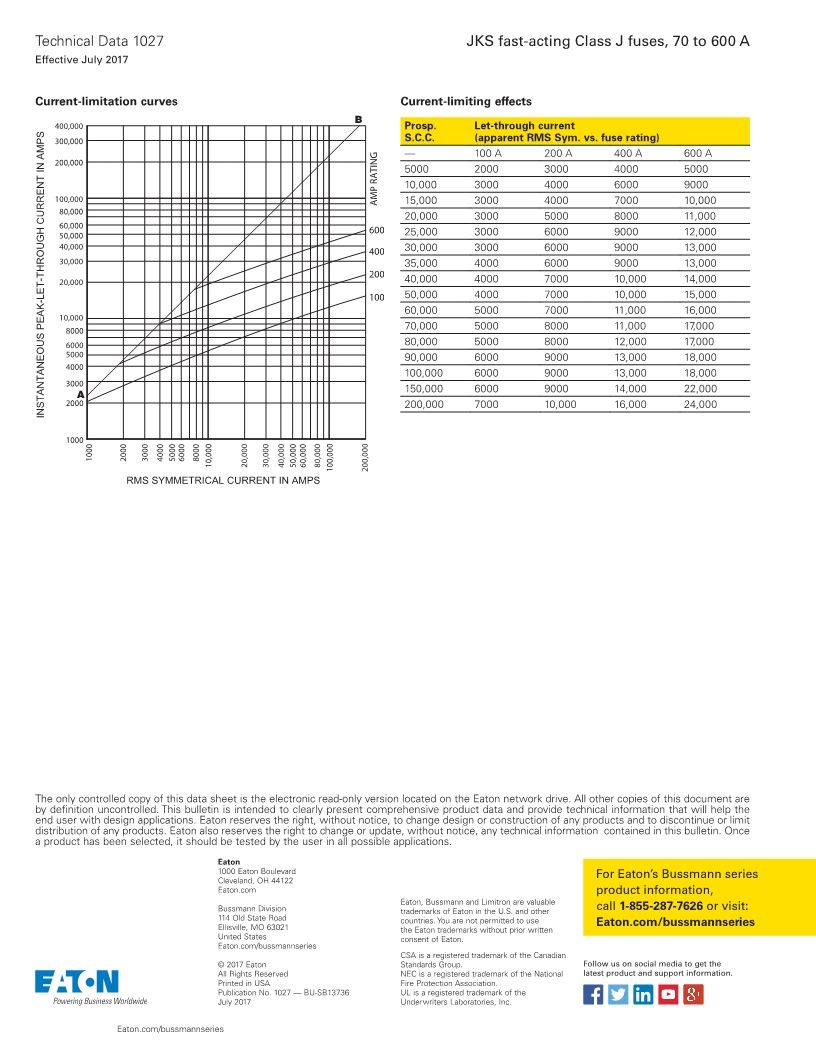

• Current limitation for non-inductive circuits provides Class J current-limiting response to maximum ground fault and short-circuit conditions.
• 200kA interrupting rating provides high ratings at all circuit locations.
• Economical solutions for high-fault circuits.
Typical Applications
• Power Panelboards
• Machinery Disconnects

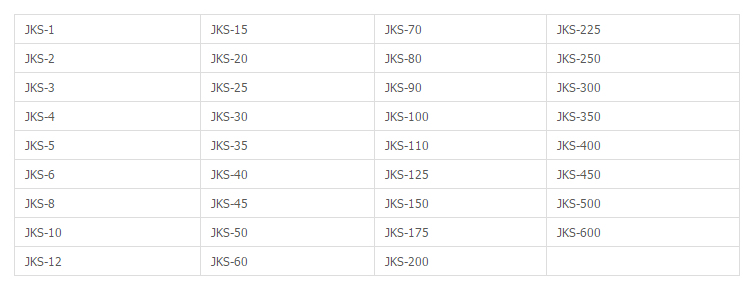

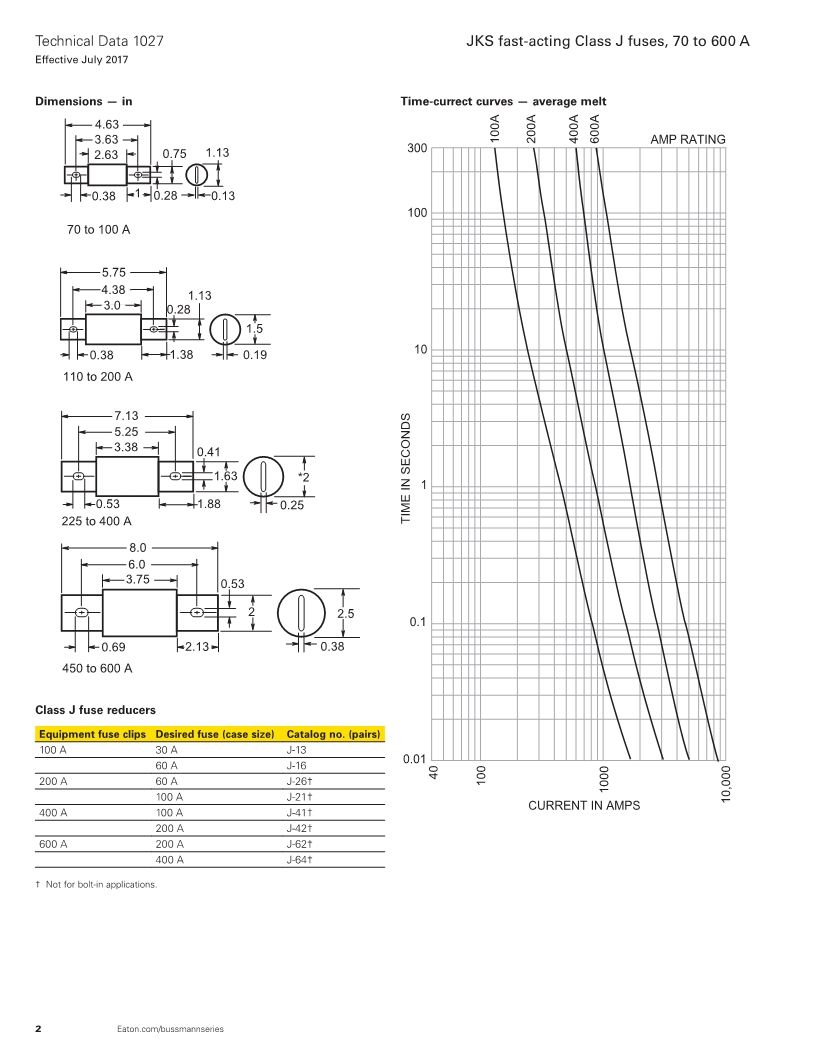

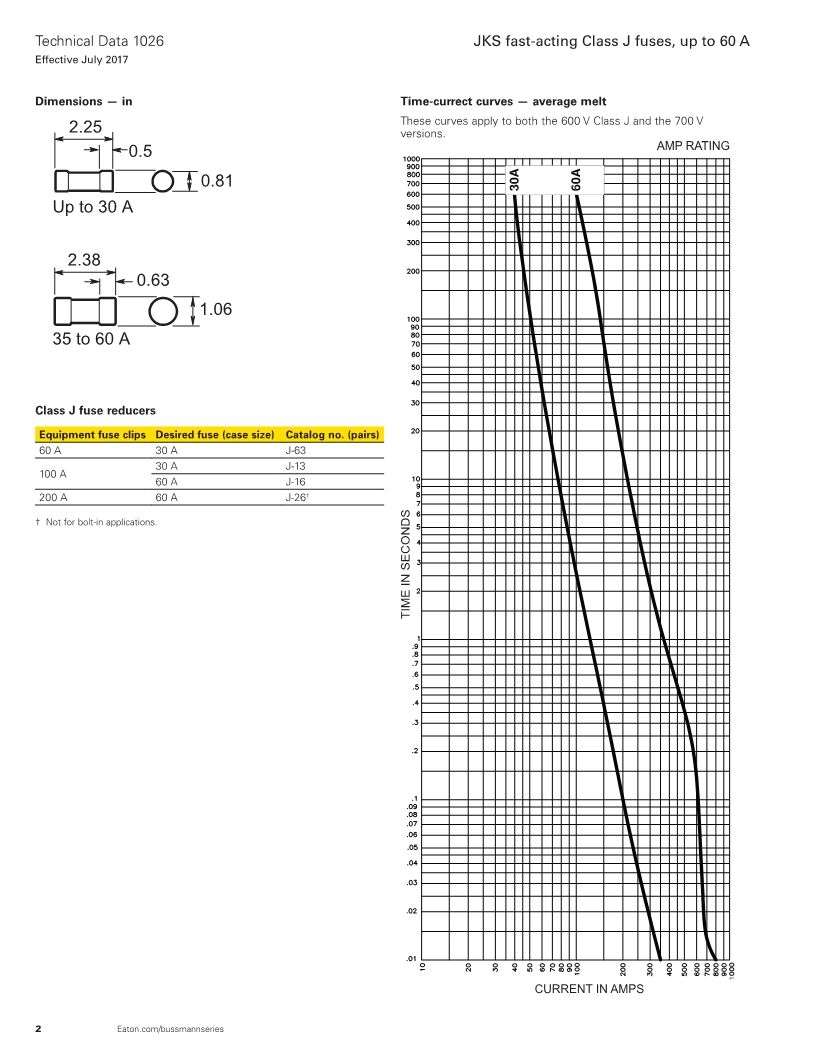

Catalog Numbers (Amps)

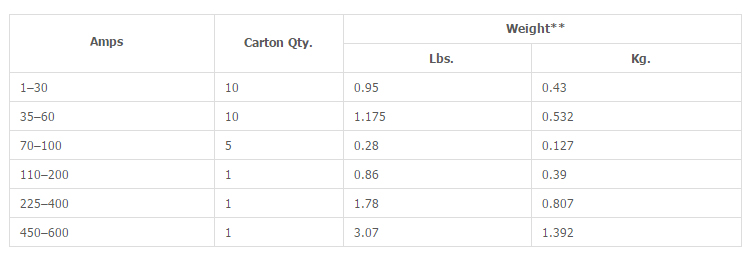

Carton Quantity and Weight–JKS LIMITRON (600Vac)*
*15-30A rated 200VDC, 31-60A rated 175VDC and 10 KAIC.
