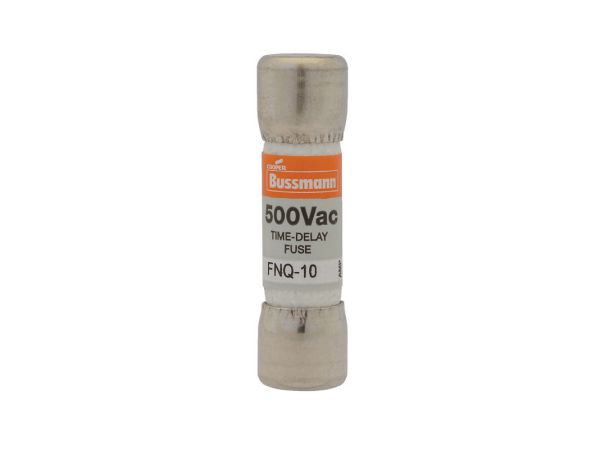

FNQ
13⁄32˝ x 1-1⁄2˝ 500Vac Time-delay supplemental fuses
Catalog symbol / color code
FNQ - Orange (500Vac maximum voltage)
————————————————————————————————————
Class: Supplemental
Description: Time-delay supplementary fuse.
• Nickel plated brass endcaps.
• For motor control transformers and other circuits with in-rush currents.
Dimensions: 13⁄32” x 11⁄2” (10.3 x 38.1mm).
Ratings:
Volts: 500Vac (or less)
Amps: 1/10-30A
IR: 10kA RMS Sym.
Agency Information: CE, Std. 248-14, UL Listed, Guide JDYX, File E19180 CSA Certified, Class 1422-01, File 53787.
Features and Benefits
• Low cost supplemental protection of transformers and relays at 500V or less.
Typical Applications
• Control Transformer 480V Primary Protection
• Lighting Circuit Protection
• Meter Circuits
Catalog Numbers (Amps)
