Description:

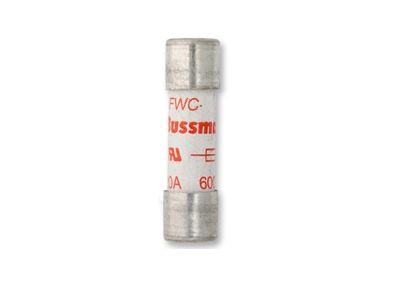

Ferrule style high speed fuses.
Ratings:
Volts: 600Vac/dc
Amps: 6-32A
IR: 200kA RMS Sym. 50kA@ 700Vdc (6-25A)
Agency Information: CE, UL Recognition: 6-32A. UL Recognition: 6-25A

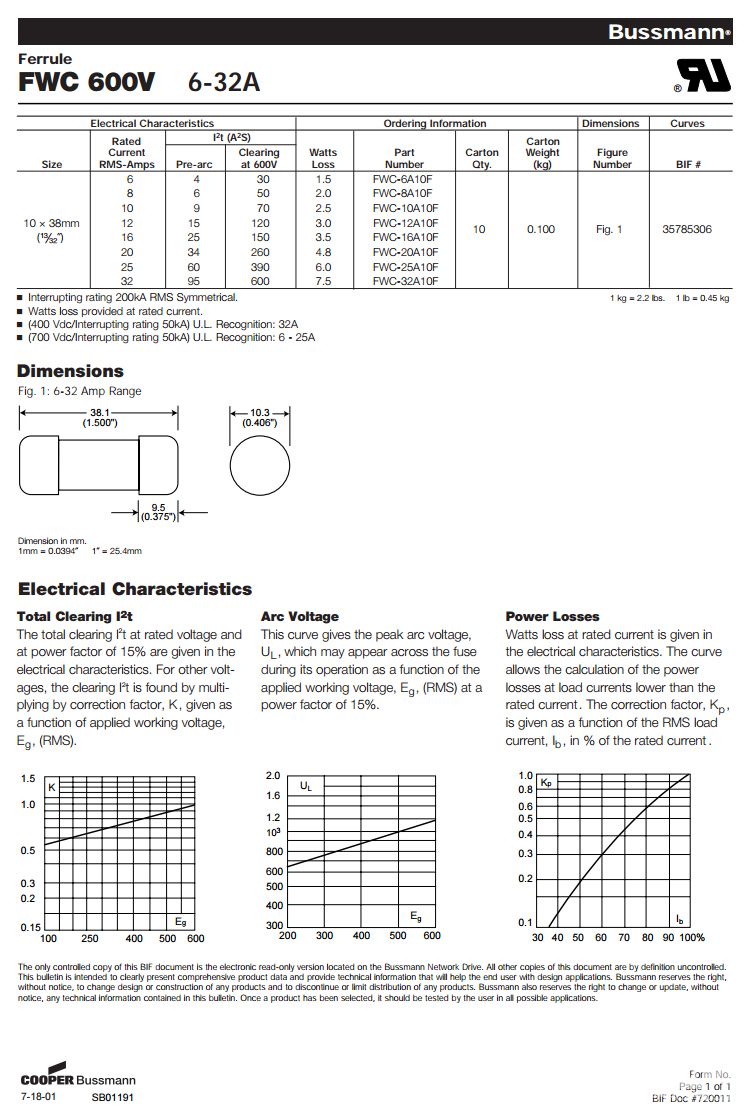

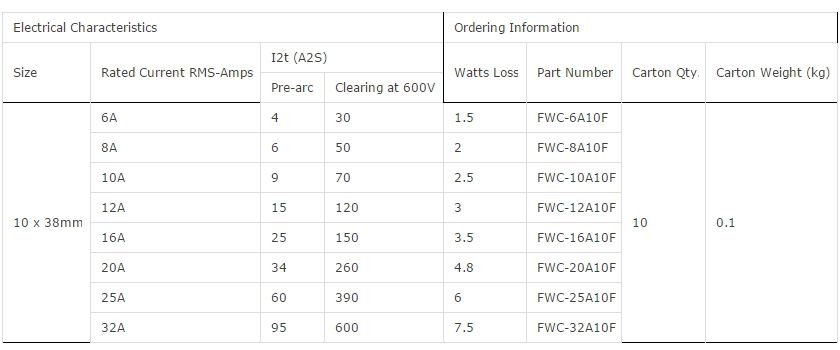

Catalog Numbers
- Interrupting rating 200kA RMS Symmetrical.
- Watts loss provided at rated current.
- (400 Vdc/Interrupting rating 50kA) U.L. Recognition: 32A
- (700 Vdc/Interrupting rating 50kA) U.L. Recognition: 6 - 25A
Features and Benefits
• Excellent cycling capability and DC performance
• Low arc voltage and low energy let-through (I2t)
• Low watts loss in a compact size
• Used with finger-safe holders/blocks
Typical Applications
• DC common bus
• DC drives
• Power converters/rectifiers
• Reduced voltage starters
