Description:

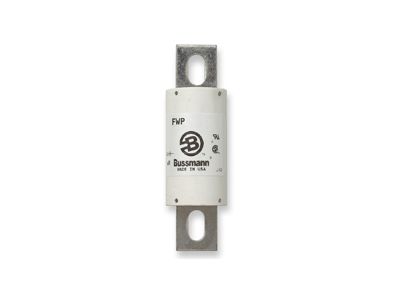

North American style stud-mount fuses.
Ratings:
Volts: 700Vac/dc
Amps: 5-1200A
IR: 200kA RMS Sym. 50kA @700Vdc
Agency Information: CE, UL Recognition & CSA Component Acceptance on 5-800A
Features and Benefits
• Excellent DC performance
• Low arc voltage and low energy let-through (I2t)
• Superior cycling capability
Typical Applications
• DC common bus
• DC drives
• Power converters/rectifiers
• Reduced voltage starters

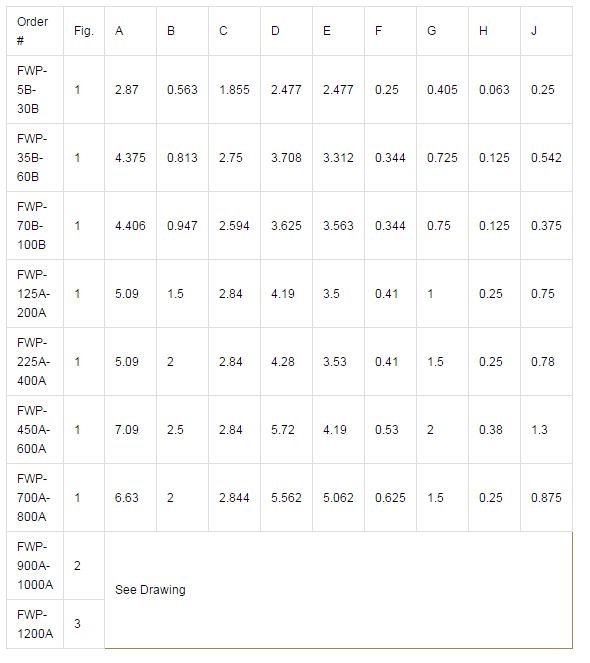

Dimensions (in)

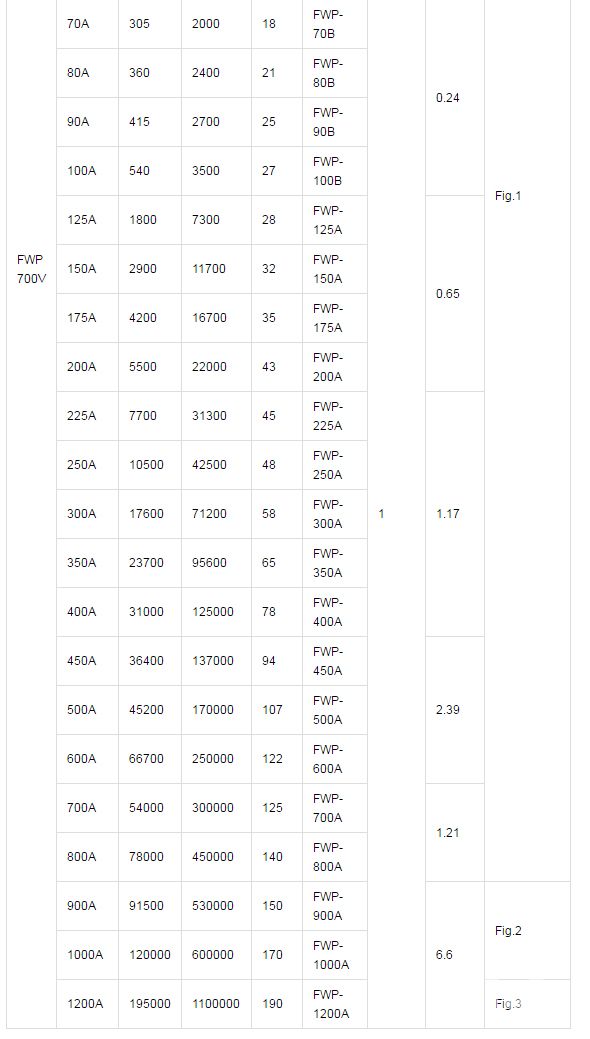

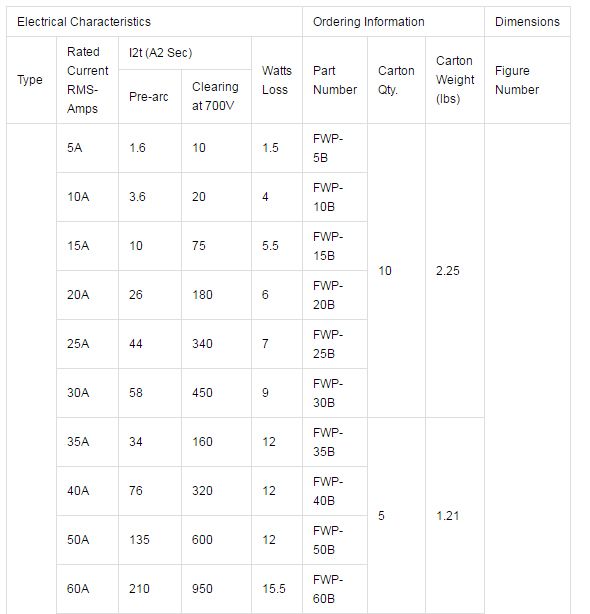

Catalog Numbers
- 1 kg = 2.2 lbs 1 lb = 0.45 kg
- Interrupting rating 200kA RMS Symmetrical.
- Watts loss provided at rated current.
- (700 Vdc/Interrupting rating 50kA) U.L. Recognition & CSA Component Acceptance on 5 through 100 & 700 through 800 amperes.
- (700 Vdc/Interrupting rating 10kA) U.L. Recognition & CSA Component Acceptance on 125 through 600 amperes.

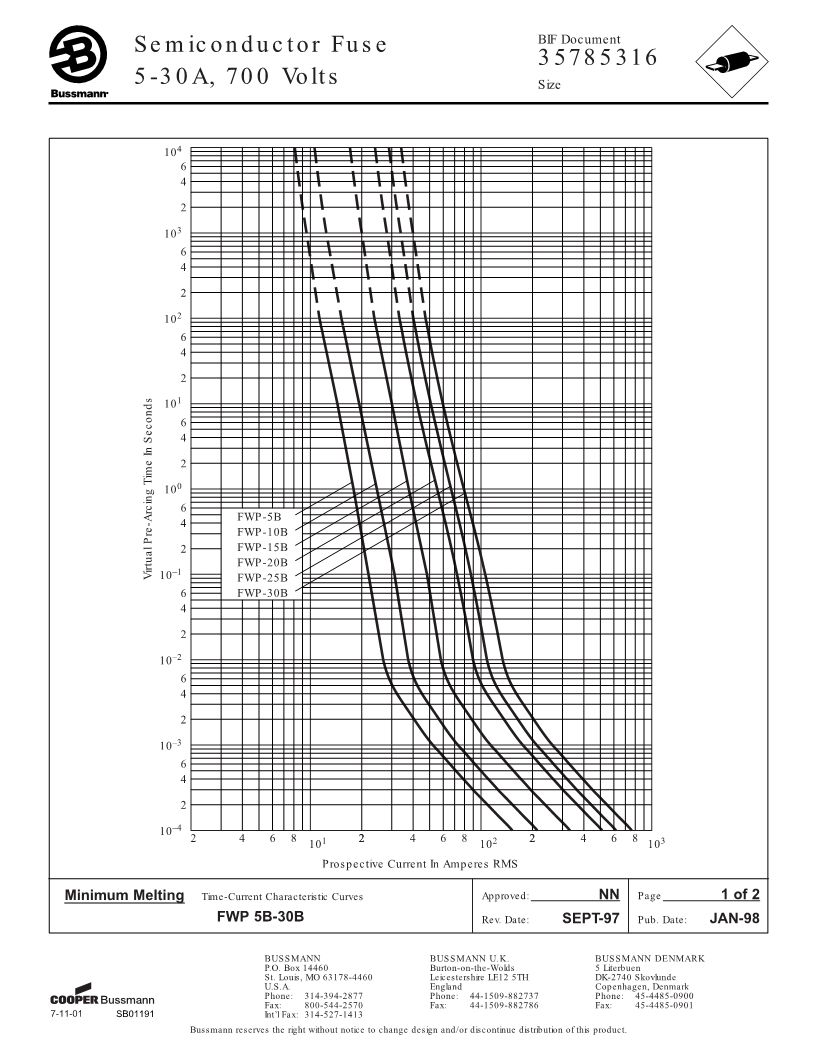

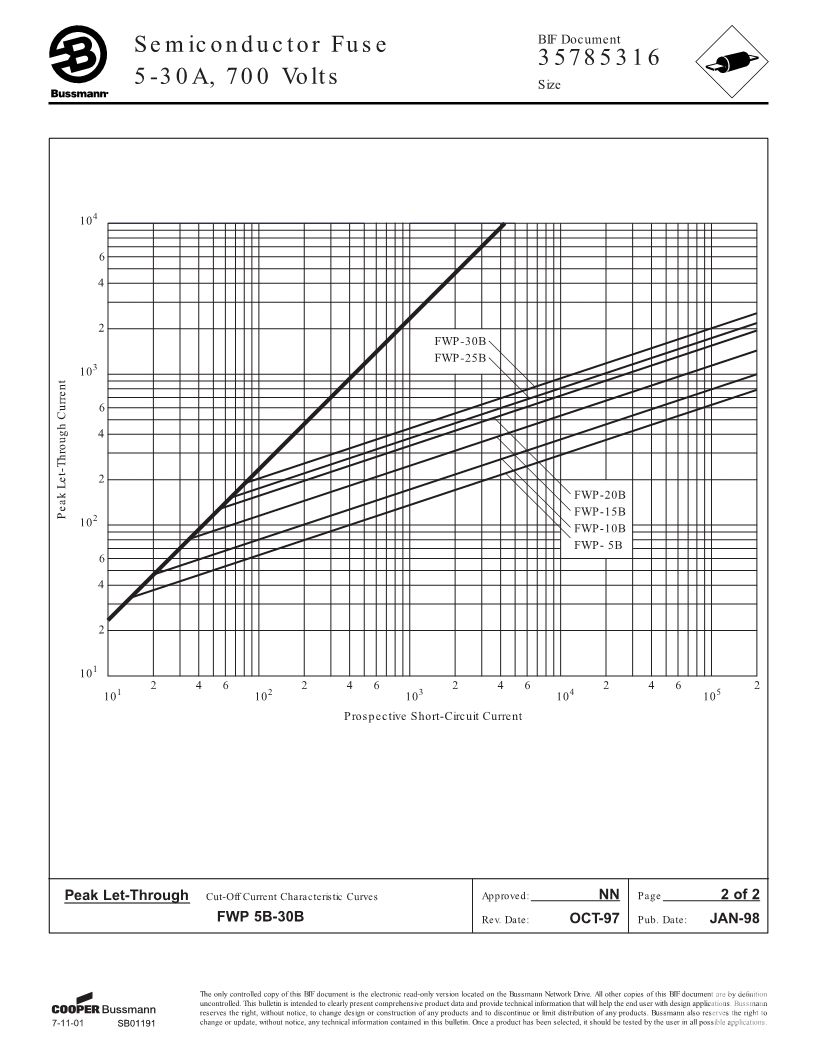

FWP 系列产品型录（FWP-5B to FWP-30B）

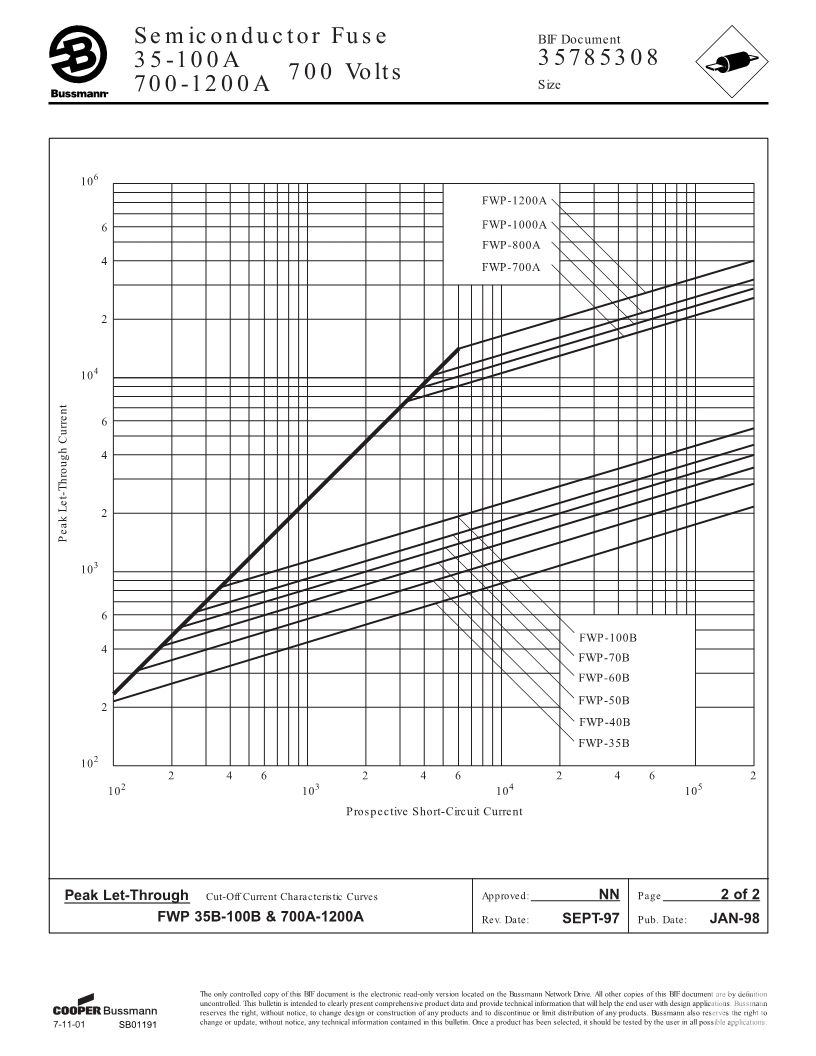

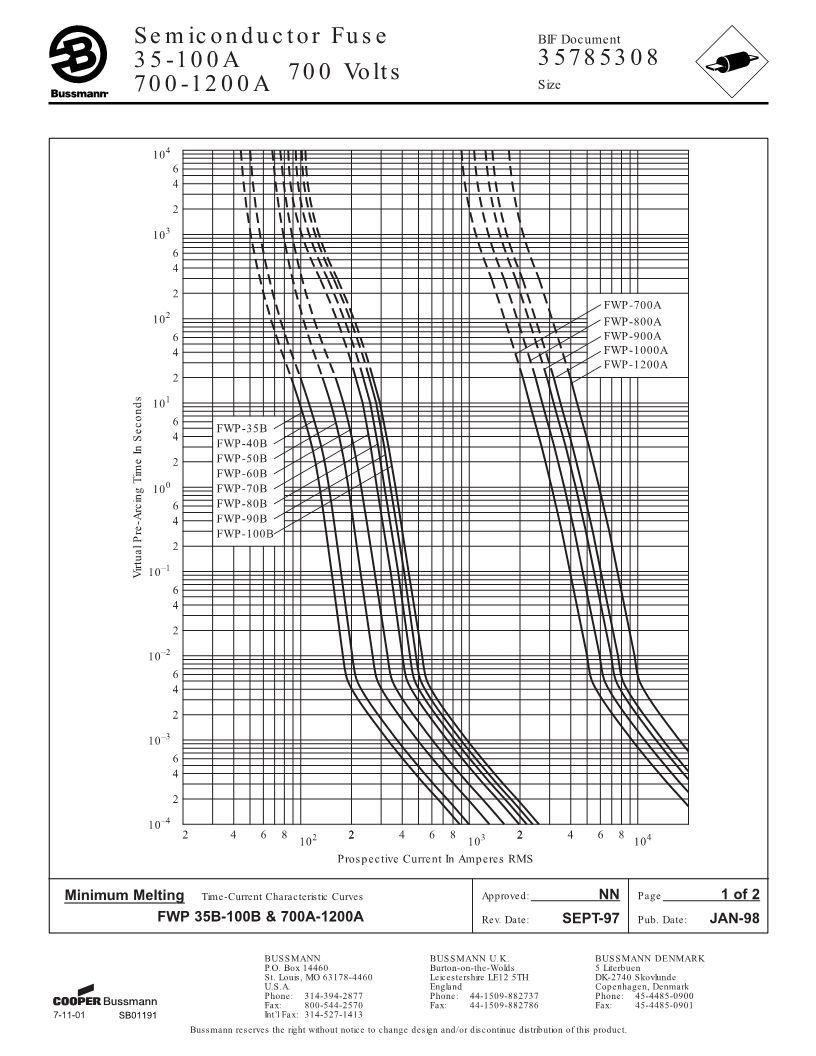

FWP 系列产品型录（FWP-35B to FWP100B and FWP-700A to FWP-1200A）

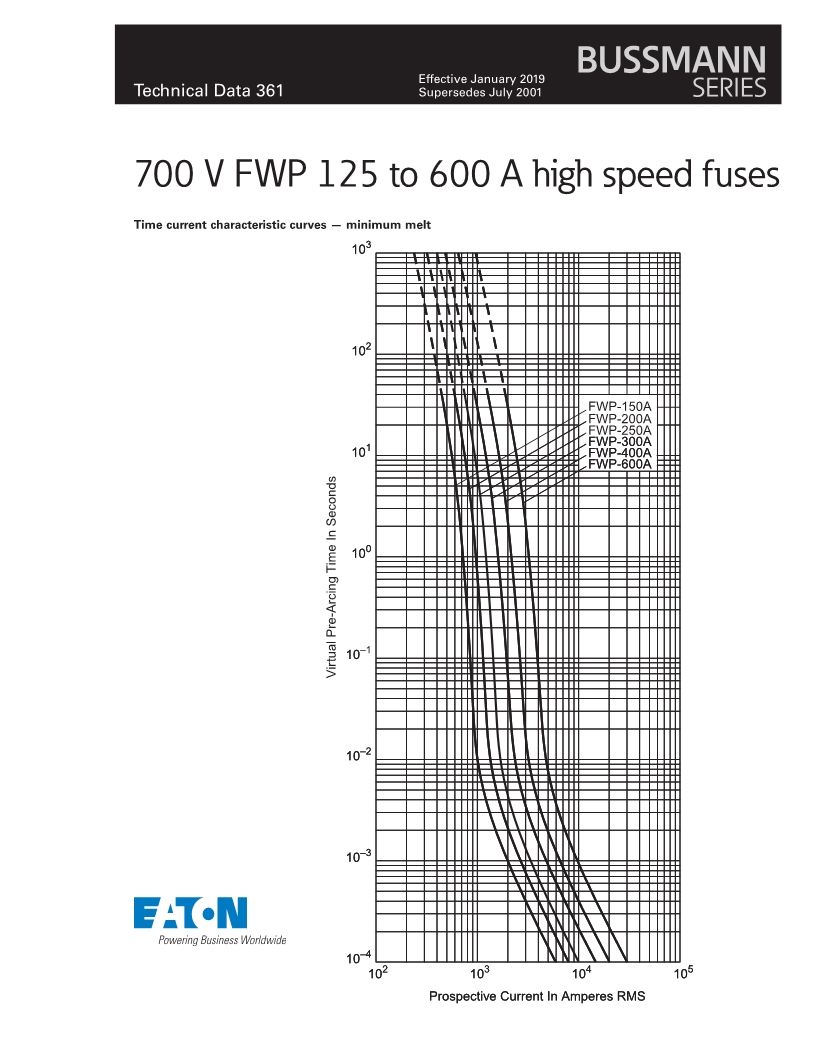

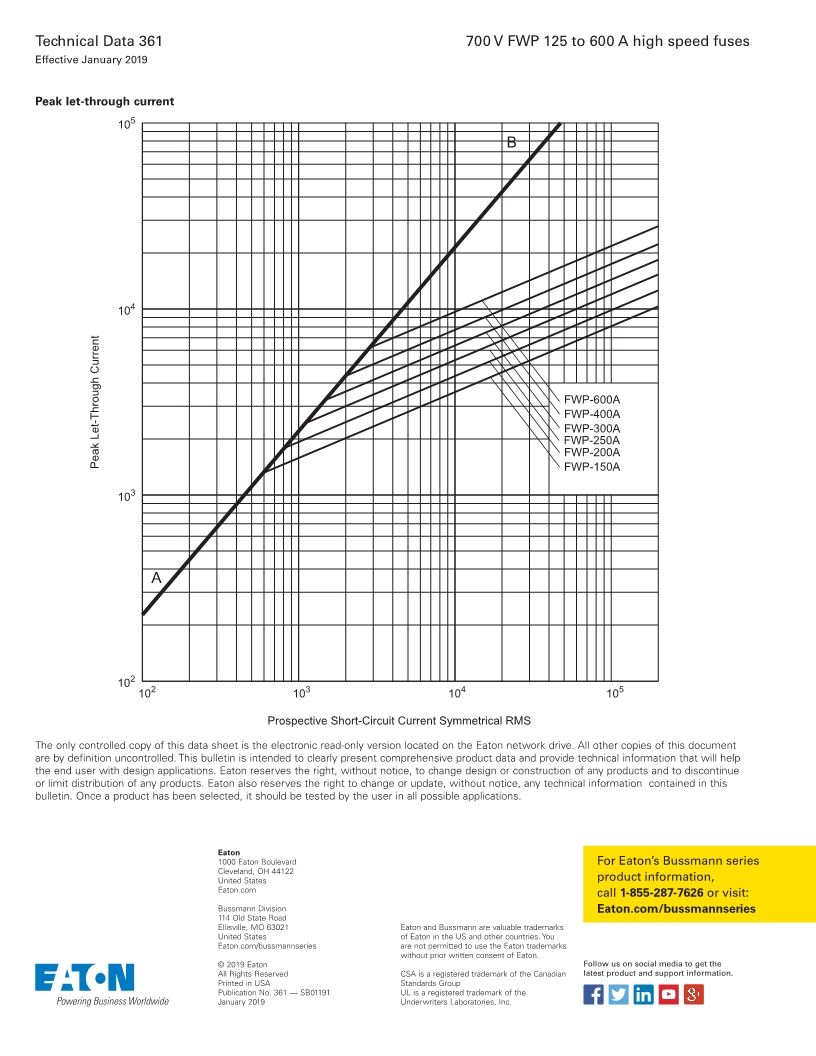

FWP 系列产品型录（FWP-150A to FWP-600A）
